Used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.

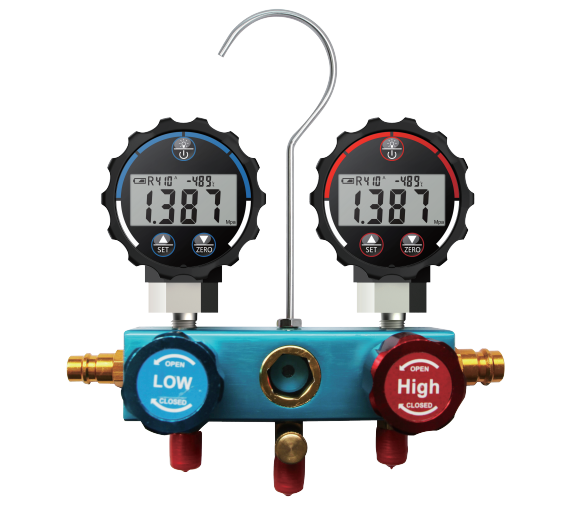

High-quality dual-table valve with imported pressure sensor, high precision, excellent workmanship, stable performance. Large screen display is clear and intuitive and high grade refrigerant pipes reduce leaks. Battery-powered with low power consumption for a longer life. Rubber jacket makes it tough and durable.

Specifications

• Pressure Measuring Range -0.100~5.000MPa
• Operating Temperature and Humidity -10~60℃; 35%~85%RH
• Resolution pressure: 0.001MPa; temperature: 0.1℃
• Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
• Battery Life six months
• Power supply 3V CR2450 button battery
• Sampling Period 1.2s
• Battery Indicator displays "LOB" at low battery

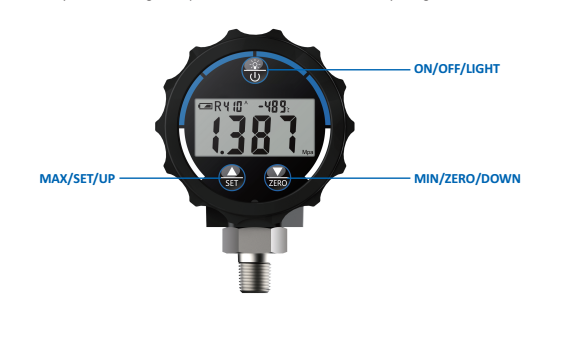

• Display 37mm x 17mm LCD/green backlight
• Measurement Units MPa, kPa, bar, psi, kgf/cm2, mmHg
• Out-of-Range Alarm pressure: FULL；temperature
• Double core valve 2
• One year warranty

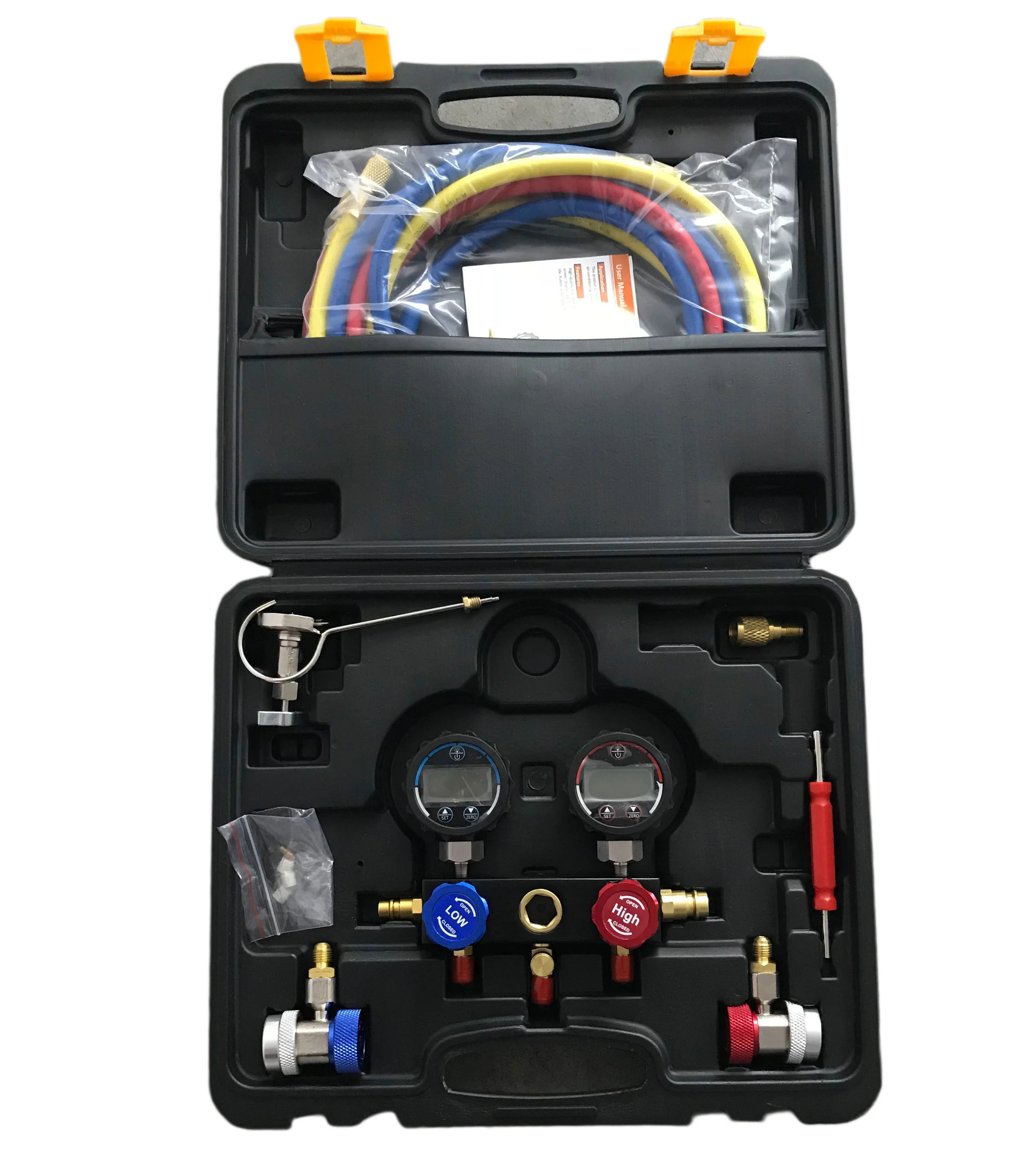

Included in the box

• 1.5m fluorine hose 3, min pressure: 800psi; max pressure: 4000psi
• 2 x High and low pressure test connector (low side: blue, high side: red)
• Corkscrew
• Dual purpose valve wrench
• R410A adapter
• Blow molding package
• Manual
