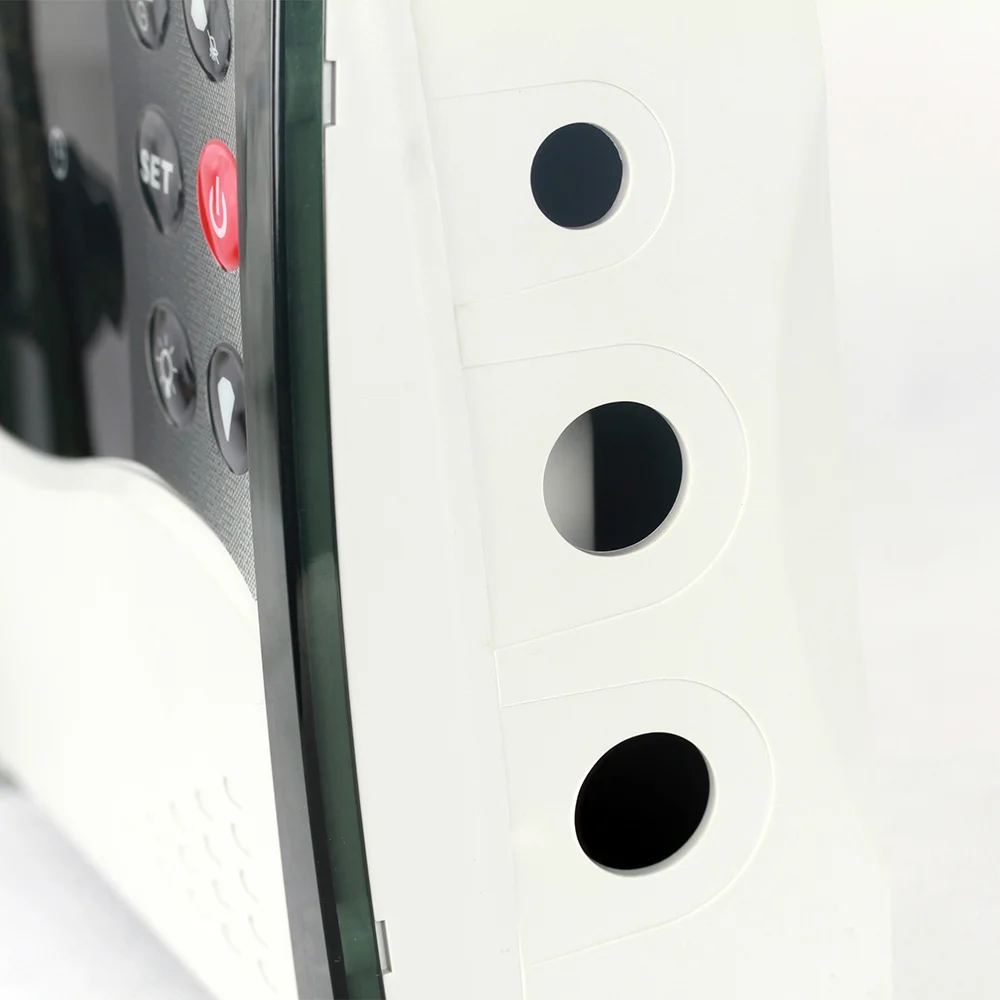

Elitech ECB-1000 Plus Multi Electric Control Box
$0.00
Elitech ECB-1000 Plus Multi Electric Control Box
The Elitech Multi-Purpose Electric Control Box ECB-1000 Plus is ideal for 3 Phase and less than 3PH refrigeration systems. Functions include; refrigeration, defrost, fan, light control, alarm and time display.
A large display area shows all the necessary information. It can directly control heavy loads with a 3PH relay and has status LEDs and pin code protection to avoid unauthorised changes.
Use the real-time clock to schedule defrost times and save energy.
Specifications:
- Power cupply: 220VAC±10%,50/60Hz
- Power consumption: less than 7W
- Temperature measuring range: -49°C~119°C
- Accuracy: ±1°C
- Temperature controlling range: -40°C~99°C
- Resolution: 0.1°C/1°C
- Relay capacity of compressor: 50A/240VAC max.
- Capacity of controlling the compressor: 3P Defrost 30A/220VAC
- Capacity of controlling the fan: 16A/220VAC
- Capacity of controlling the light: 16A/220VAC
- Alarm: 8A/220VAC
- Storage temperature: -20°C~75°C
- Operating temperature: -10°C~65°C
- Sensor type: NTC (10KΩ/25°C,B-3435K)
